How to turn your Raspberry Pi into a Jukebox

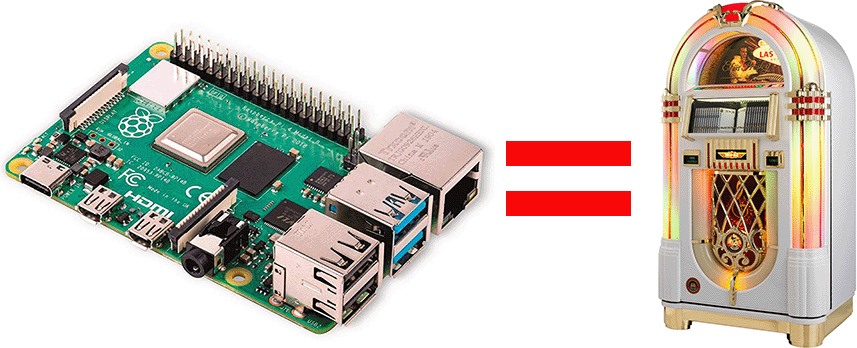

This guide we will show how you can turn your Raspberry Pi into a low-cost music streaming device with help of the Pi MusicBox Linux distribution.

Pi MusicBox Setup Image 1


  • Raspberry Pi (any model except 4)
  • SD card (4 GB recommended)
  • Network connection
  • Computer with SD card reader (macOS, Windows or Linux)
  • Speakers/Amplifier/Headphones

Note: The examples in this tutorial are shown with macOS, but any other operating system can be used as well.

Downloading Pi MusicBox

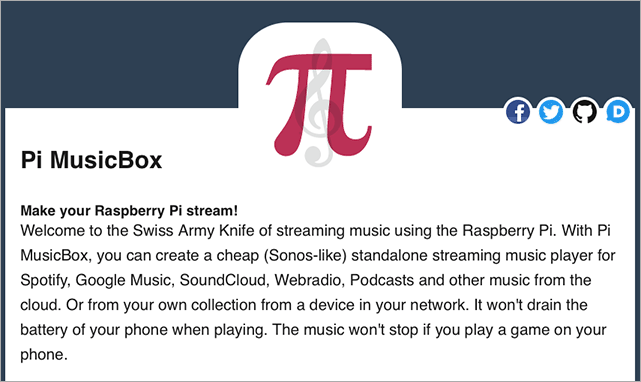

Go to the Pi MusicBox website.

Pi MusicBox Setup Image 2

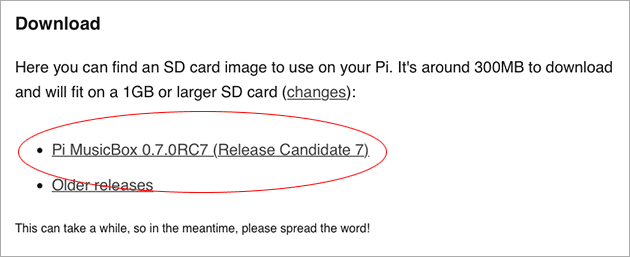

Follow the download link located toward the bottom of the page.

Pi MusicBox Setup Image 3

This link will take you to where the binaries as well as the source code is stored. At the time of writing Pi MusicBox is at version 0.7.0 Release Candidate 7, but that is likely to change as this article becomes older.

Click on the download link labelled

Pi MusicBox Setup Image 4

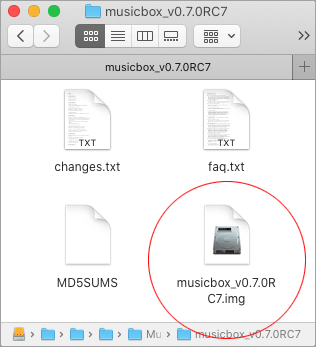

Extract the zip file into a directory of your choice.

Pi MusicBox Setup Image 5

Preparing the SD card

We will now write the Pi MusicBox image to an SD card. There are many ways that an image can be written, but we will in this tutorial use a freeware tool for macOS called ApplePi-Baker V2. If you are using another operating system or prefer to use your own memory card utility, you can skip to the next section.

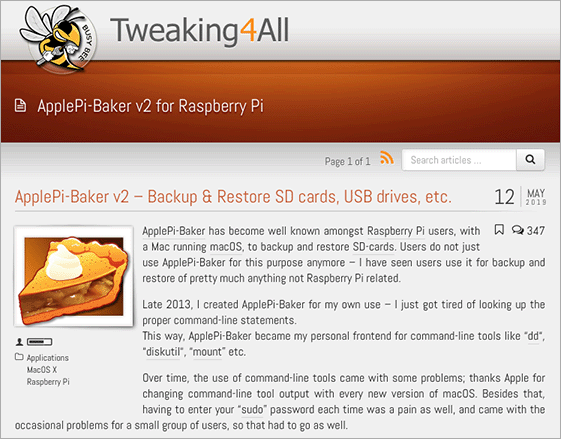

ApplePi-Baker V2 is located at

Pi MusicBox Setup Image 6

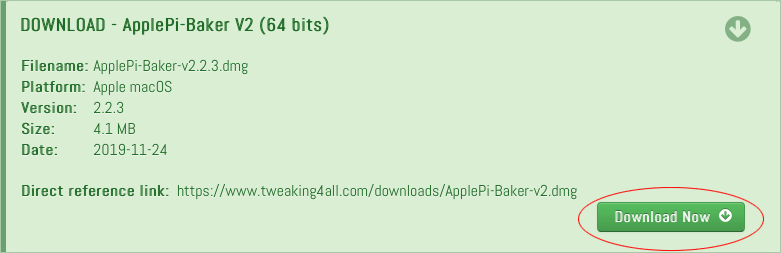

The download link can be found two thirds down the page.

Pi MusicBox Setup Image 7

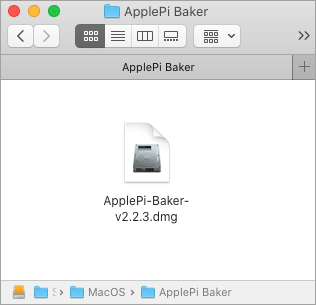

Once downloaded, double-click the icon to start the installer.

Pi MusicBox Setup Image 8

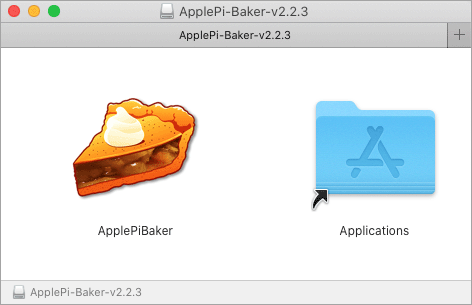

Drag & Drop the ApplePiBaker icon into your Applications folder to complete the installation.

Pi MusicBox Setup Image 9

Once installed, open LaunchPad and double-click the icon to launch ApplePi-Baker.

Pi MusicBox Setup Image 10

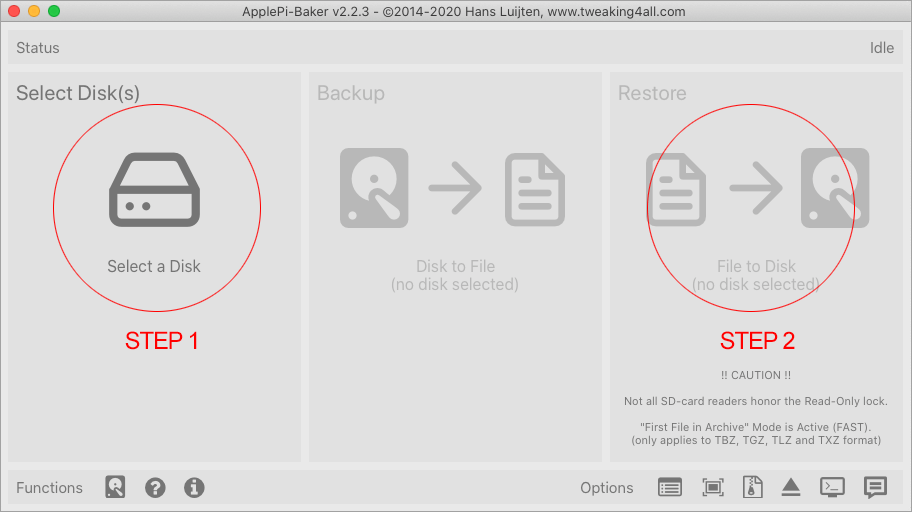

The user interface is very simple with only two steps to consider.

    1. Select a disk where to write the file and;
    1. Specify path to the Pi MusicBox image.

Pi MusicBox Setup Image 11

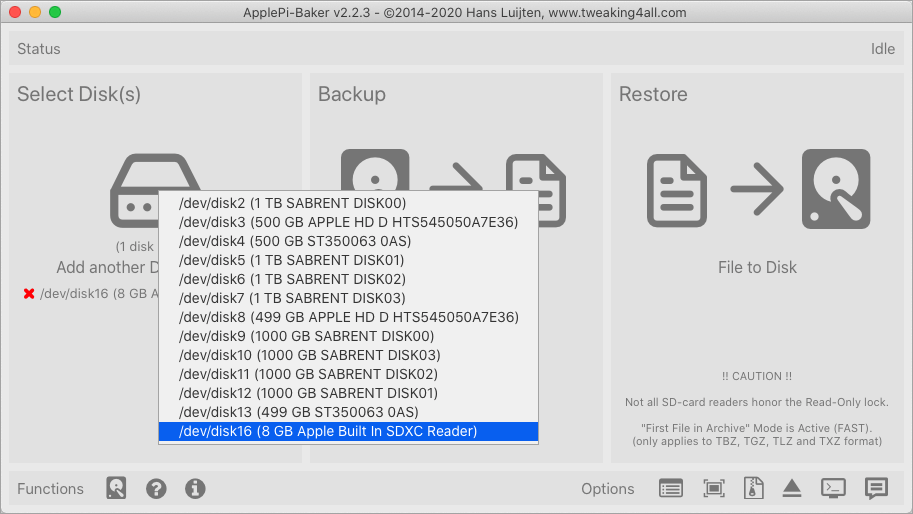

With an understanding of the user interface, let us insert an empty SD card into our computer and select the SD card from the list of devices in Step 1. Be sure to select the correct disk in case you have many devices connected to your computer.

Pi MusicBox Setup Image 12

Next select the Pi MusicBox disk image in Step 2, which at the time of writing is musicbox_v0.7.0RC7.img.

Pi MusicBox Setup Image 5

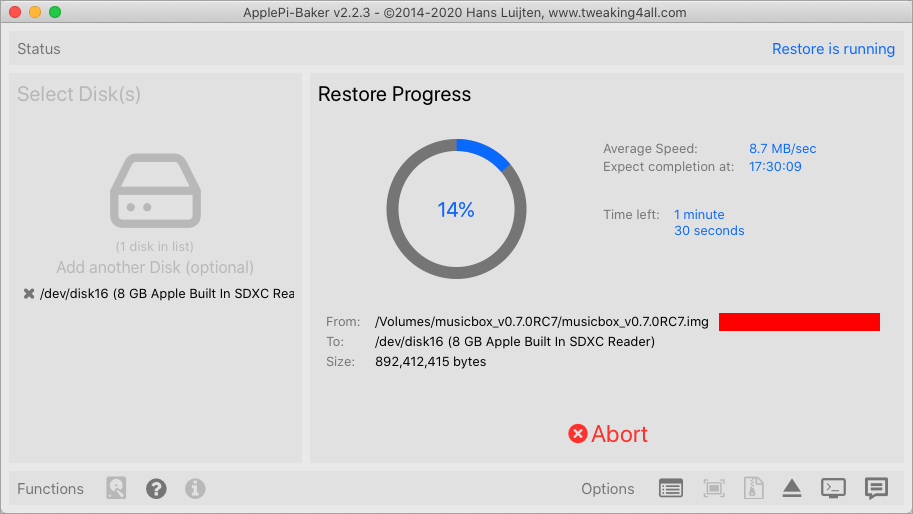

The image writer will start as soon as you have selected the file and will only take a few minutes.

Pi MusicBox Setup Image 13

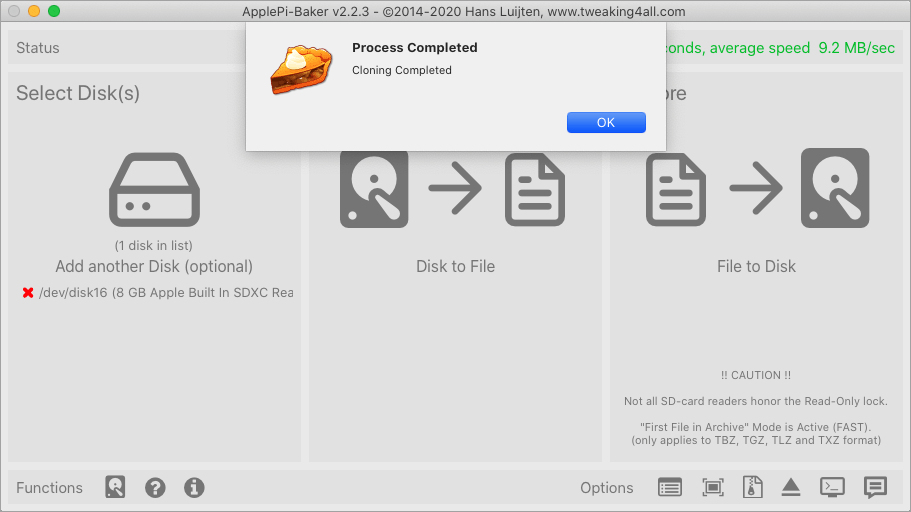

You will see a Process Completed message once the files have been written to the SD card.

You can now close Apple-Pi Baker.

Pi MusicBox Setup Image 14

Your untitled SD card has now have been renamed to MUSICBOX.

Pi MusicBox Setup Image 15

Pre-boot configuration

As Pi MusicBox is a Linux distribution dedicated specifically to music streaming you should not need to do much apart from connect your speakers or amplifier to the headphone jack on the Raspberry Pi. We will, however, change a few settings before we boot up the Raspberry Pi.

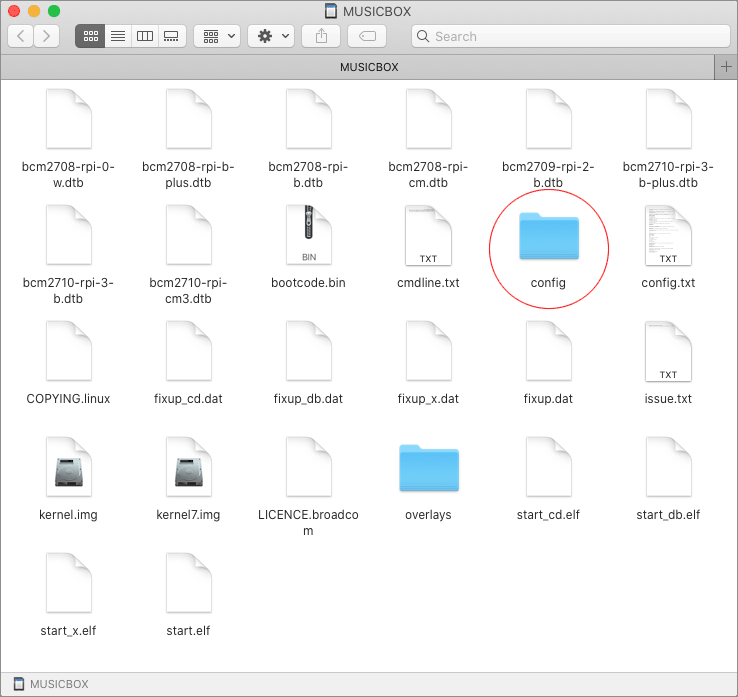

Browse to the config folder on the SD card.

Pi MusicBox Setup Image 16

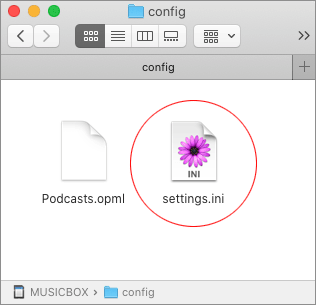

Open the settings.ini file in your favourite text editor.

Pi MusicBox Setup Image 17

If you are planning to connect to a Wi-Fi network, locate the Network Settings section in the settings.ini file and enter your Wi-Fi name and password under wifi_network and wifi_password. You can skip this step if you are only connecting via ethernet.

# --------------------
# | Network Settings |
# --------------------
# Settings for your WiFi network, if you use a (supported) wifi-dongle
# Only supports WPA security, no WEP or access points without security (dive into the command line for that!)
wifi_network = your_wifi_network
wifi_password = your_wifi_password

You will also need to enable_ssh if you want to adjust any settings after the installation and do not want to connect a physical keyboard and monitor to the Raspberry Pi.

# Enable this to allow remote login via SSH on MusicBox
enable_ssh = true

Finally, locate the MusicBox Settings section to set a new root_password. Is is always recommended to change the default password in order to achieve a minimum level of security, even though we do not recommend to run Pi MusicBox outside your home firewall.

# ---------------------
# | MusicBox Settings |
# ---------------------
# To secure your device, change the default password to something else.
# For security, the value below will be automatically cleared once the password is changed.
root_password = your_password

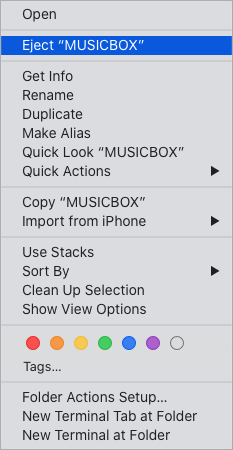

You can now eject the SD card from your computer and insert it into the Raspberry Pi.

Pi MusicBox Setup Image 18


If you have not yet done so, connect your amplifier or speakers to the Raspberry Pi as we are now ready to boot up the system. The installation, which is completely automatic, will start as soon as the device has been turned on and will only take a few minutes.

You will see the following message once the installation has finished (assumes that a monitor is physically connected to the Raspberry Pi so that you can see what is going on).

Initializing MusicBox...
Setting sound configuration...
Probing sound devices:
card 0: ALSA [bcm2835 ALSA], device 0: bcm2835 ALSA [bcm2835 ALSA]
card 0: ALSA [bcm2835 ALSA], device 1: bcm2835 ALSA [bcm2835 IEC958/HDMI]
* Found internal device: card0
    HDMI output detected
* Found internal device: card0
    HDMI output detected
Selected card=0  (i2s=  output=analog  usb=  intc=0)
Using audio card0 (analog)
MusicBox name is MusicBox
Stopping Samba daemons: nmbd smbd.
Starting Samba daemons: nmbd smbd.
Starting Dropbear SSH server: dropbear.
Starting daemon monitor: monit.
My IP address is 192.168.1.XXX
Connect to me in your browser at http://MusicBox.local or http://192.168.1.XXX

We will now test the SSH connection to see if we are able to connect to the Raspberry Pi.

In a Terminal, type the following:

$ ssh root@musicbox.local

Type yes if this is the first time you are connecting to the Raspberry Pi, followed by your password.

The authenticity of host 'musicbox.local (xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx)' can't be established.
Are you sure you want to continue connecting (yes/no)? yes

Warning: Permanently added 'musicbox.local, xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx' (RSA) to the list of known hosts.
root@musicbox.local's password: your_password

 ______ _    _______            _       ______
(_____ (_)  (_______)          (_)     (____  \
 _____) )    _  _  _ _   _  ___ _  ____ ____)  ) ___ _   _
|  ____/ |  | ||_|| | | | |/___) |/ ___)  __  ( / _ ( \ / )
| |    | |  | |   | | |_| |___ | ( (___| |__)  ) |_| ) X (
|_|    |_|  |_|   |_|____/(___/|_|\____)______/ \___(_/ \_)



You have successfully connected to the Raspberry Pi as root if you can see the root@MusicBox shell prompt.

Type exit to close the Terminal session.

# exit

The Dashboard

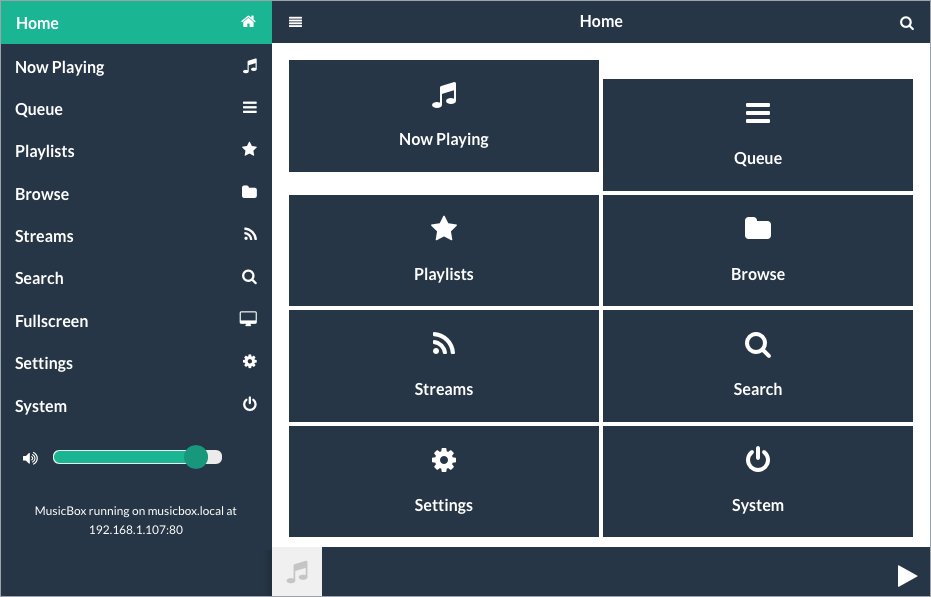

We are now ready to view the dashboard that ships with Pi MusicBox. In a Web Browser, type the following address to access the web page.


Pi MusicBox Setup Image 19

From here you can set various configuration options as well as listen to music via internet radio.

Enabling AirPlay

If you have an AirPlay compatible device, such as an iPhone, you will need to enable AirPlay Streaming in the Settings before you can stream music from your iPhone.

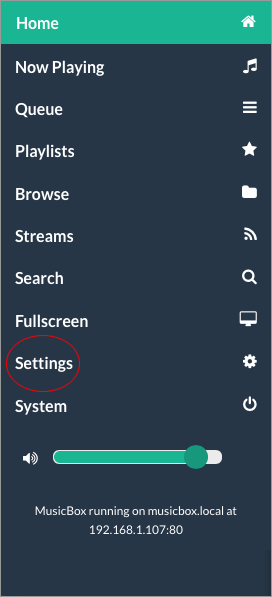

In the left-hand menu, select Settings.

Pi MusicBox Setup Image 20

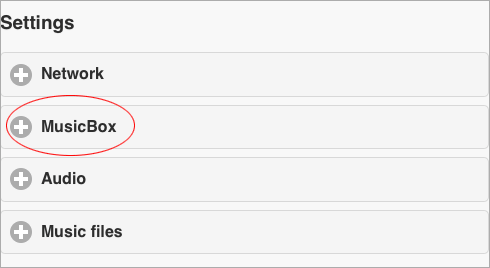

On the Settings page, expand the MusicBox tab.

Pi MusicBox Setup Image 21

Scroll down the page until you reach AirPlay Streaming. Enable this option.

Pi MusicBox Setup Image 22

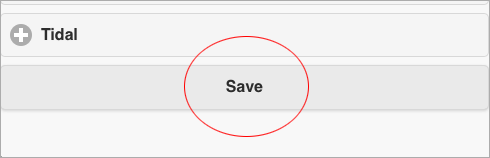

Scroll further down to the bottom of the page and press the Save button.

Pi MusicBox Setup Image 23

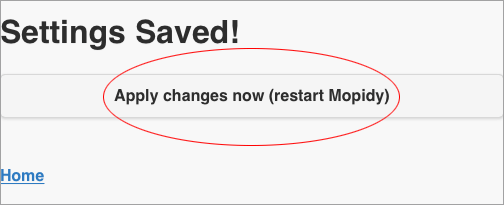

Finally, press Apply changes now (restart Mopidy) in order for the changes to take effect.

Pi MusicBox Setup Image 24

Once the Raspberry Pi has restarted you will be able to select MusicBox in the list of AirPlay compatible devices on your iPhone.

Pi MusicBox Setup Image 25

Streaming via macOS

If you are streaming from a computer with macOS, you will need change the sound output device in System Preferences.

Open System Preferences via LaunchPad.

Pi MusicBox Setup Image 26

Select Sound.

Pi MusicBox Setup Image 27

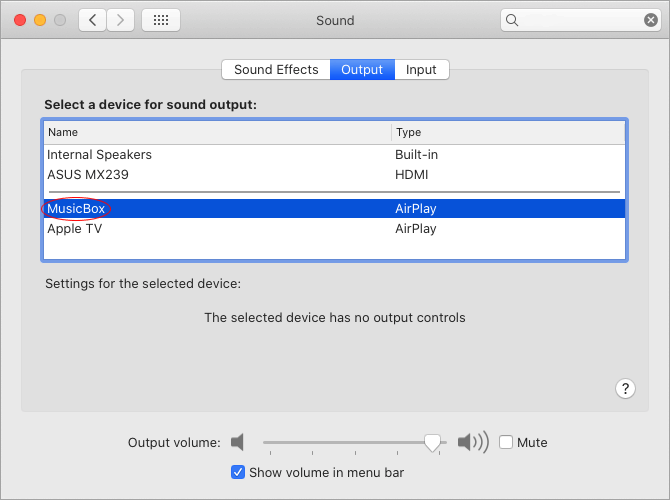

Select MusicBox in the list of Output devices.

Pi MusicBox Setup Image 28

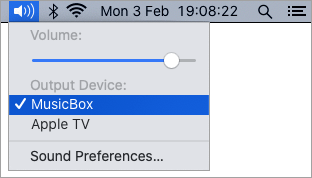

MusicBox can also be selected directly from the top menu bar if the Volume icon is visible.

Pi MusicBox Setup Image 29


This guide has shown how a Raspberry Pi can be turned into a low cost Jukebox with help of the Pi Music Box Linux distribution. In many cases it can actually be a better solution than the Bluetooth/AirPlay speakers that are currently available on the market due to the fact that sound quality will depend entirely on what amplifier or speaker the Raspberry Pi is connected to.

Happy streaming!
