PUBLISHED: March 7, 2020
Deprecation Notice: This article was written more than a year ago which means that its information might no longer be up-to-date. We cannot therefore guarantee the accuracy of it's contents.

Table of Contents

How to measure the network speed between two computers with iPerf

The network speed between two computers is affected by several factors such as type of network cable used, network interface card, router, switch, hard drive and so forth. It is therefore not always obvious to understand where the bottleneck lies when the connection seems slower than advertised. We will in this guide explain how to measure network speeds with the command line tool iPerf.

iPerf Measure Network Speed Image 0

Note: Measuring the network speed is not the same as benchmarking your internet connection, which in most cases is likely to be much slower than your local area network.


  • Two computers (running macOS/Linux or Windows) that are able to “see” each other on the same network, i.e. they should be able to respond to each other’s ping requests.

Downloading iPerf

iPerf is free and available for download from the following address:

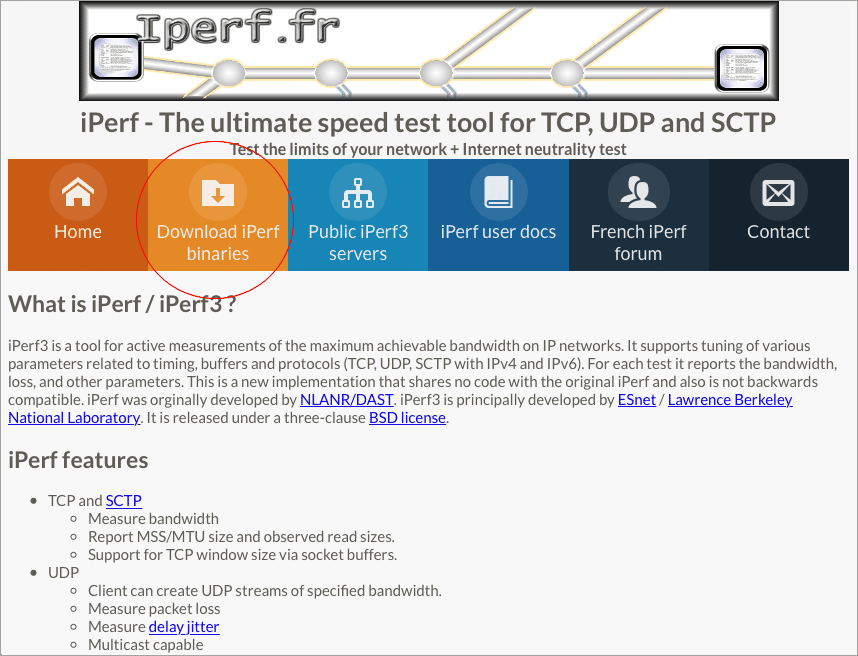

Navigate to the Download iPerf binaries page.

iPerf Measure Network Speed Image 1

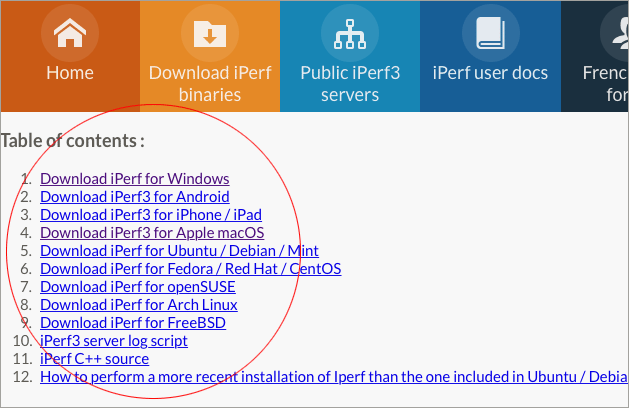

Select your operating system and download the file which comes in the form a zip archive. Unless told otherwise it is recommended to always download the latest version of iPerf.

iPerf Measure Network Speed Image 2

Depending on your operating system, the extracted zip file usually only contains a single file called iperf3 (or iperf3.exe if you are running Windows). The number in the end indicates that the software is on its third major release cycle.

Configuring iPerf

iPerf can be run from any location, but it is recommended to move the file into a directory where your other executables are stored, such as /usr/local/bin on the Mac or C:\Program Files on Windows. If you want to save the file somewhere completely different, but want to avoid the hassle of specifying the exact path to iperf3, its directory will have to be added to your search path.

Linux Installation Path

For Linux Bash shell users, the following line will need to be added to the appropriate file that is read when your shell launches.

export PATH=$PATH:/your/custom/path

There are a few different places where you could conceivably set the variable name: ~/.bash_profile, ~/.bashrc, or ~/.profile. The difference between these files is (primarily) when they get read by the shell. If you are not sure where to add the path, ~/.bashrc is a good start. Different locations may exist in other Linux distributions, but that is beyond the scope of this article.

Windows Installation Path

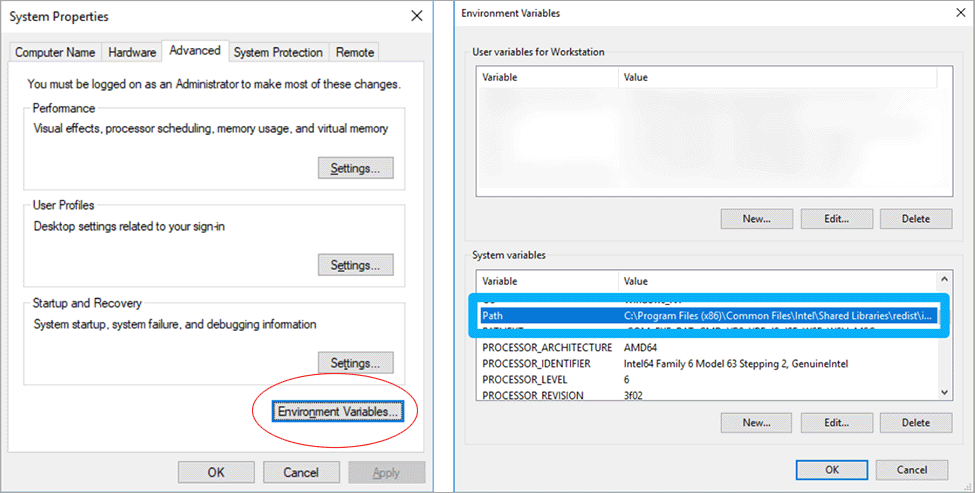

On Windows you can set the custom path from within the Control Panel > System Properties > Environment Variables window.

iPerf Measure Network Speed Image 3

Mac Installation Path

On the Mac you can append your custom path to the end of the file in /etc/paths.

$ sudo nano /etc/paths


To verify that your new path has been set, type the following in a Terminal.

$ echo $PATH


Finding our IP Addresses

Before we begin to test iPerf we need to take a note of our local machine’s IP addresses for the purpose of the next step.

Linux IP Address

On some Linux distributions, such as Ubuntu, you can find your machine’s IP address simply by typing hostname -I in a shell.

$ hostname -I

Mac IP Address

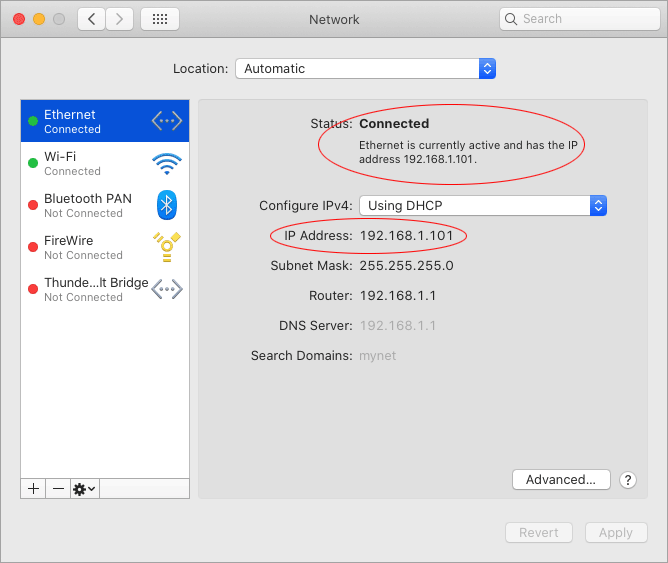

On the Mac your easiest bet is to go into System Preferences > Network to view your IP address. Just make sure you have selected the correct service (Ethernet, Wi-Fi, etc) first from the left-hand column.

iPerf Measure Network Speed Image 4

Windows IP Address

Finally, on Windows you can query your local IP address by typing ipconfig in a Command Prompt.

C:\> ipconfig

Windows IP Configuration

Ethernet adapter Local Area Connection

Connection-specific DNS Suffix. . :
Link-local IPv6 Address . . . . . : fe80:8524:7a12:c4543:214d
IPv4 Address. . . . . . . . . . . :
Subnet Mask . . . . . . . . . . . :
Default Gateway . . . . . . . . . :


We are on this occasion looking for the IPv4 Address, which is

How to use iPerf

iPerf operates in two modes; server and client mode. A server, in the context of iPerf, is the machine that receives packets (of data) and client is the machine that sends the packets.

Server Mode

To start a server, open a terminal on your first computer and type iperf3 -s.

$ iperf3 -s

Server listening on 5201

We can see that the server is now listening for packets on port 5201.

Client Mode

Now, go to your second computer and type, iperf3 -c, to start the client. (You should replace the fictional IP number with your own server IP address).

$ iperf3 -c

Connecting to host, port 5201
[  4] local port 12345 connected to port 5201
[ ID] Interval           Transfer     Bandwidth
[  4]   0.00-1.00   sec   113 MBytes   952 Mbits/sec
[  4]   1.00-2.00   sec   112 MBytes   942 Mbits/sec
[  4]   2.00-3.00   sec   111 MBytes   931 Mbits/sec
[  4]   3.00-4.00   sec   112 MBytes   941 Mbits/sec
[  4]   4.00-5.00   sec   112 MBytes   940 Mbits/sec
[  4]   5.00-6.00   sec   110 MBytes   923 Mbits/sec
[  4]   6.00-7.00   sec   112 MBytes   940 Mbits/sec
[  4]   7.00-8.00   sec   112 MBytes   940 Mbits/sec
[  4]   8.00-9.00   sec   112 MBytes   940 Mbits/sec
[  4]   9.00-10.00  sec   112 MBytes   940 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth
[  4]   0.00-10.00  sec  1.09 GBytes   939 Mbits/sec                  sender
[  4]   0.00-10.00  sec  1.09 GBytes   938 Mbits/sec                  receiver

The client will immediately start to send data to the server as fast as the hardware possibly allows. In our example the maximum throughput appears to be around 940 Mbits/second, which is what you can roughly expect from a 1 Gbps network.

Additional Options

iPerf comes with a myriad of other options which can be passed as additional command line arguments. For a full list of available commands, type iperf3 --help.

$ iperf3 --help

Usage: iperf [-s|-c host] [options]
       iperf [-h|--help] [-v|--version]

Server or Client:
  -p, --port      #         server port to listen on/connect to
  -f, --format    [kmgKMG]  format to report: Kbits, Mbits, KBytes, MBytes
  -i, --interval  #         seconds between periodic bandwidth reports
  -F, --file name           xmit/recv the specified file
  -B, --bind      <host>    bind to a specific interface
  -V, --verbose             more detailed output
  -J, --json                output in JSON format
  --logfile f               send output to a log file
  -d, --debug               emit debugging output
  -v, --version             show version information and quit
  -h, --help                show this message and quit
Server specific:
  -s, --server              run in server mode
  -D, --daemon              run the server as a daemon
  -I, --pidfile file        write PID file
  -1, --one-off             handle one client connection then exit
Client specific:
  -c, --client    <host>    run in client mode, connecting to <host>
  -u, --udp                 use UDP rather than TCP
  -b, --bandwidth #[KMG][/#] target bandwidth in bits/sec (0 for unlimited)
                            (default 1 Mbit/sec for UDP, unlimited for TCP)
                            (optional slash and packet count for burst mode)
  -t, --time      #         time in seconds to transmit for (default 10 secs)
  -n, --bytes     #[KMG]    number of bytes to transmit (instead of -t)
  -k, --blockcount #[KMG]   number of blocks (packets) to transmit (instead of -t or -n)
  -l, --len       #[KMG]    length of buffer to read or write
                            (default 128 KB for TCP, 8 KB for UDP)
  --cport         <port>    bind to a specific client port (TCP and UDP, default: ephemeral port)
  -P, --parallel  #         number of parallel client streams to run
  -R, --reverse             run in reverse mode (server sends, client receives)
  -w, --window    #[KMG]    set window size / socket buffer size
  -M, --set-mss   #         set TCP/SCTP maximum segment size (MTU - 40 bytes)
  -N, --no-delay            set TCP/SCTP no delay, disabling Nagle's Algorithm
  -4, --version4            only use IPv4
  -6, --version6            only use IPv6
  -S, --tos N               set the IP 'type of service'
  -Z, --zerocopy            use a 'zero copy' method of sending data
  -O, --omit N              omit the first n seconds
  -T, --title str           prefix every output line with this string
  --get-server-output       get results from server
  --udp-counters-64bit      use 64-bit counters in UDP test packets

[KMG] indicates options that support a K/M/G suffix for kilo-, mega-, or giga-

iperf3 homepage at:
Report bugs to:

Compiling from Source

It is also possible to download the latest source code for iPerf from This can be useful if you want early access to features that have not yet made it into the official release.


This guide has shown how network speeds can be measured with iPerf, a TCP, UDP, and SCTP network bandwidth measurement tool, which can prove useful when you need to identify bottlenecks in your network.

Happy Benchmarking!
